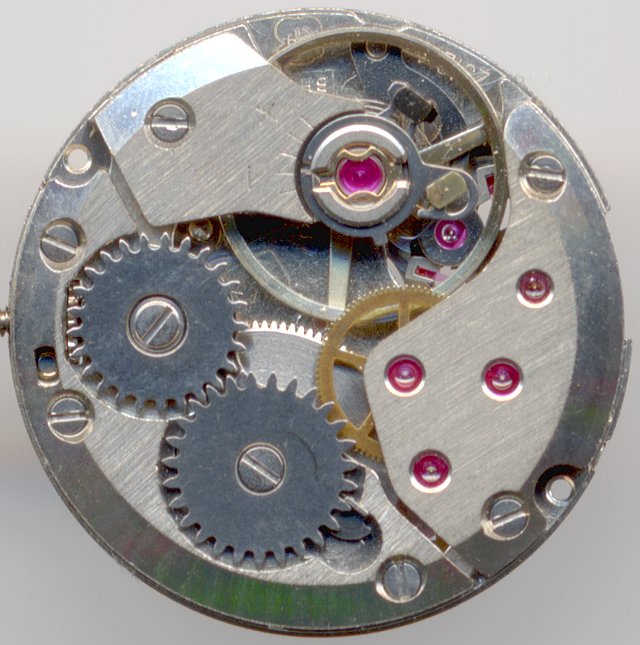

ETA 2512-1
Description
The ETA 2512-1 shown here is a typical representative of mechanical movements produced in the “golden” quartz age, the early eighties. It is a modern constructed ladies’ watch movement with a bare finish.
The construction bases on compareable smaller ETA movements such as the ETA 2410, with the only difference, that the diameter was enlarged.
The three-leg ring balance is of course beared in two Incabloc shock protection systems, the hairspring is attached with a modern-type connector to the moveable hairspring stud, and its effective length can be regulated with yet another modern ETA-type construction directly at the hairspring only.
A characteristic thing of this movement is its indirectly driven minute hand (achieved by the third wheel), which allowes increased space for a larger balance and a larger mainspring barrel. Both are responsible for longer runtime and increased precision. In constrast to many other ETA movements, the dial-side bearing of the third wheel is realized by a synthetic ruby, while the mainspring barrel lacks a ruby (which is not really neccessiary btw.).

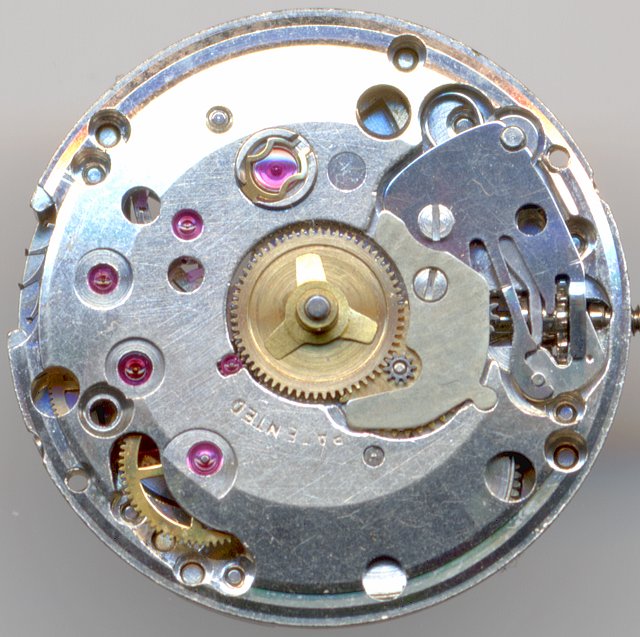

ETA 2512-1 dial side
Technical data
| Manufacturer: | ETA |
| Caliber: | 2512-1 |
| Size: | 7 3/4''' (measured: 17,2mm) |
| Height: | 2,85mm |
| A/h: | 21600 |
| lift angle: | 52° |
| Number of jewels: | 17 |
| Escapement: | Pallet lever |
| Balance types: | Nickel anular balance |
| Shock protection(s): | Incabloc |
| Balance bearing / direction hairspring: | Clockwise |
| Moveable stud: | yes |
| Adjust mechanism: | Hairspring key |
| Construction: |
|
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 2 hole(s) |
| Production period: | 1976-1983 |
| Production years: | 1976-1983 |
| Documentation (years): | 1978 |
Usage gallery

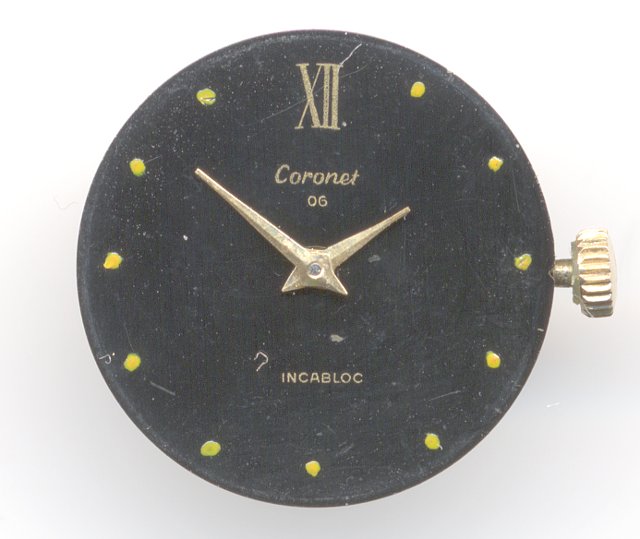

Coronet 06 ladies' watch (dial only)
Related Movements
Links
* [Ranfft Uhren: ETA 2512](http://www.ranfft.de/cgi-bin/bidfun-db.cgi?10&ranfft&0&2uswk&ETA_2512) * [Ranfft Uhren: ETA 2512-1](http://www.ranfft.de/cgi-bin/bidfun-db.cgi?10&ranfft&0&2uswk&ETA_2512_1) * [Timedesign: ETA 2512](http://www.timedesign.de/uhrwerke/eta_2512.html)
This movement was donated by [Harald Hoeber](index.php?option=com_content&view=article&id=61:donated-movements-of-harald-hoeber&catid=10&lang=en-GB&Itemid=201). Thank you very much!
