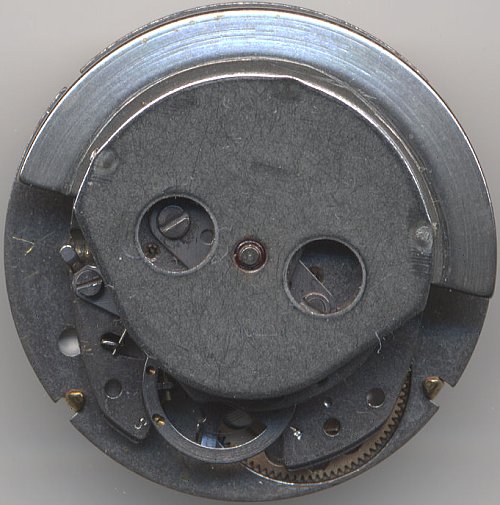

Timex M33


Timex M33 |

Timex M33

Description

The caliber M33 ist the maximum enhanced base caliber M24 with added center second, jumping date, weekday and selfwindung mechanism. With a diameter of 29mm and a height of 6mm it looks impressive.

The selfwinding mechanism is as simple as ingenious: With a simple excenter changer, the mainspring is wound directly without any transmission gears inbetween.

Technical data

Manufacturer:Timex
Caliber:M33
Size:13'''
A/h:18000
Escapement:Pin lever
Balance types:Nickel anular balance
Shock protection(s):none
Balance bearing / direction hairspring:Bridge
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever, escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
  • JG (weekday indication (aperture))
  • RDR (date corrector)
  • AUT (selfwinding)

Usage gallery

Timex M33: Timex gents watch model 46860

Timex gents watch model 46860


Related Movements

Timex M24:
base caliber with direct center seconds indication, often unused
Timex M25:
M24 with date indication (slowly advancing) with small numbers
Timex M27:
M24 with day-date with space inbetween and instant date change
Timex M31:
M24 with automatic
Timex M32:
M24 with automatic with slowly advancing date indication with small numbers
Timex M33:
M24 with automatic, day-date (with space inbetween) and instant date change
Timex M72:
base caliber with with 21 jewels, based on M24
Timex M74:
M72 with automatic
Timex M78:
base caliber, different bridge shape and movement-side screws, otherwise based on M24
Timex M100:
M78 with simpler ratchet and dial mounted on own plate
Timex M101:
M78 with date indication with larger numbers
Timex M102:
M78 with day-date indication with small space inbetween
Timex M104:
base caliber with bridge with more holes, otherwise based on M24
Timex M105:
M104 with larger date indication and simpler ratchet
Timex M108:
M104 with automatic and larger date indication
Timex M114:
base caliber with bridge with more holes, otherwise based on M78
Timex M116:
same as M104
